PackageModule
MountingThrough Hole
Power2W
Quick Jump:
Technical Specifications

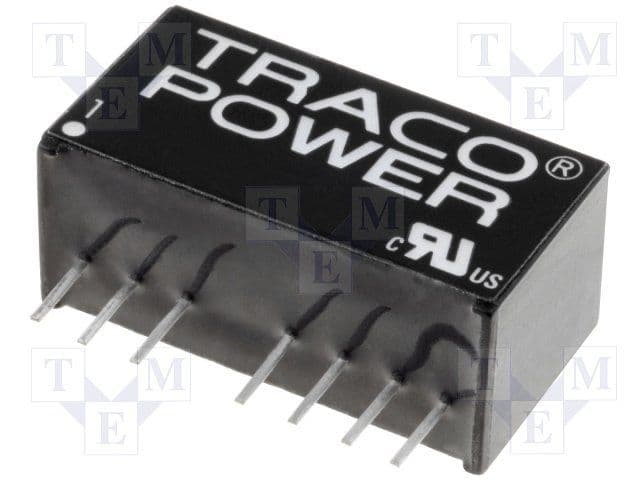

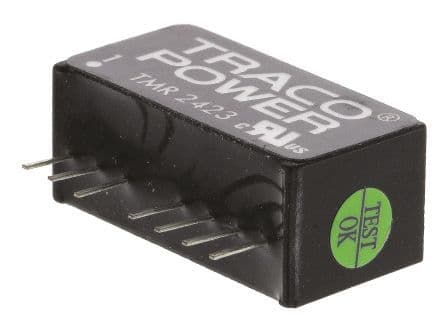

Traco Power TMR2423 technical specifications.
General
Package/Case
Module
Current - Output 1
65mA
Current - Output 2
65mA
Depth
9.2mm
Efficiency
82%
Features
SCP
Height
11.1mm
Isolation Voltage
1.5kV
Length
21.8mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
18V
Max Input Voltage
36V
Min Input Voltage
18V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
65mA
Max Output Power
2W
Max Power Dissipation
2W
Mount
Through Hole
Nominal Input Voltage
24V
Number of Outputs
2
Output Current
65mA
Output Power
2W
Output Voltage
15V
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TMR 2 (2W)
Voltage - Output 1
15V
Voltage - Output 2
-15V
Weight
4.8g
Width
9.2mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMR2423 Datasheet
Download the complete datasheet for Traco Power TMR2423 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
