PackageSIP
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Traco Power TMR3-0522 technical specifications.
General
Package/Case
SIP
Current - Output 1
125mA
Current - Output 2
125mA
Depth
9.2mm
Efficiency
81%
Height
11.1mm
Isolation
Isolated
Isolation Voltage
1.5kV
Length
21.8mm
Max Input Voltage (DC)
9V
Min Input Voltage (DC)
4.5V
Max Input Voltage
9V
Min Input Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
125mA
Max Output Power
3W
Mount
Through Hole
Nominal Input Voltage
5V
Number of Outputs
2
Output Current
125mA
Output Power
3W
Output Voltage
12V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
TMR 3
Voltage - Output 1
12V
Voltage - Output 2
-12V
Weight
4.8g
Width
9.2mm
Compliance
RoHS
Compliant
Datasheet
Traco Power TMR3-0522 Datasheet
Download the complete datasheet for Traco Power TMR3-0522 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

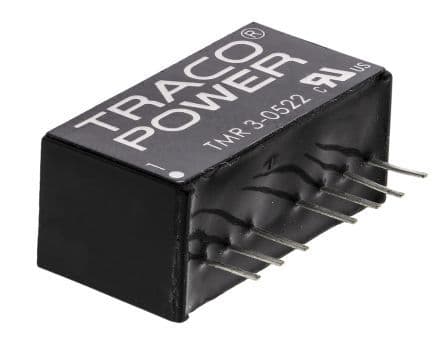

Product Images
