15V, 2.4A, 36W mains power connector featuring a male plug design. This wall-mountable unit operates from 100-240V AC input and delivers a nominal output voltage of 15V with a 2.4A maximum output current. It includes a 72-inch cord with a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output connector. Approvals include cULus, and the component is RoHS compliant. Operating temperature range is 0°C to 40°C.
Package100
MountingWall
Power36W
Quick Jump:
Technical Specifications
Triad Magnetics WSU150-2400 technical specifications.
General
Approvals
cULus
Package/Case
100
Cord Length
72inch
Current - Output 1
2.4A
Height
1.22inch
Lead Free
Lead Free
Length
3.31inch
Max Input Voltage (AC)
240V
Min Input Voltage (AC)
100V
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
40°C
Min Operating Temperature
0°C
Max Output Current
2.4A
Max Output Power
36W
Max Power Dissipation
36W
Mount
Wall
Nominal Output Voltage
15V
Number of Outputs
1
Output Connector
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Output Current
2.4A
Output Power
36W
Output Voltage
15V
Package Quantity
1
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WSU
Voltage - Output 1
15V
Width
2.09inch
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics WSU150-2400 Datasheet
Download the complete datasheet for Triad Magnetics WSU150-2400 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

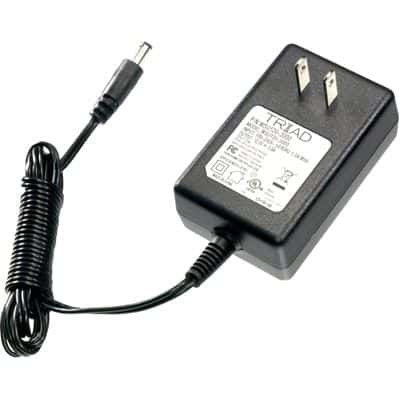

Product Images
