24VDC, 1A, 24W mains power connector, male plug type, designed for wall mounting. Features a 2.1mm I.D. x 5.5mm O.D. x 11.0mm barrel plug output. Operates within a 100-240VAC input voltage range and a 0°C to 40°C temperature range. This RoHS compliant component offers a single output with a maximum power dissipation of 24W.
Package100
MountingWall
Power24W
Quick Jump:
Technical Specifications
Triad Magnetics WSU240-1000 technical specifications.
General
Package/Case
100
Current - Output 1
1A
Lead Free
Lead Free
Max Input Voltage (AC)
240V
Min Input Voltage (AC)
100V
Max Input Voltage
240V
Min Input Voltage
100V
Max Operating Temperature
40°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Power
24W
Max Power Dissipation
24W
Mount
Wall
Nominal Output Voltage
24V
Number of Outputs
1
Output Connector
Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm
Output Current
1A
Output Power
24W
Output Voltage
24V
Package Quantity
80
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
WSU
Voltage - Output 1
24V
Compliance
RoHS
Compliant
Datasheet
Triad Magnetics WSU240-1000 Datasheet
Download the complete datasheet for Triad Magnetics WSU240-1000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

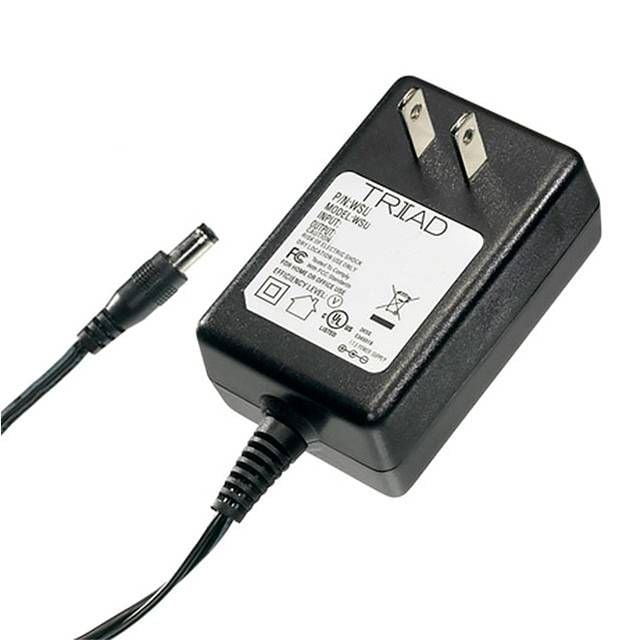

Product Images
