Infrared (IR) LED emitter featuring a 935nm wavelength and a circular lens style. This through-hole component utilizes GAAS technology and is housed in a TO-46 package. It supports a maximum forward current of 100mA and a power dissipation of 200mW, operating within a temperature range of -65°C to 125°C. The emitter offers a 18° viewing angle and is RoHS compliant.
PackageTO-46
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
TT OP133 technical specifications.
General
Package/Case
TO-46
Forward Current
100mA
Lead Free
Lead Free
Lens Style
Circular, Round
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Mount
Through Hole
Number of LEDs
1
Orientation
Top View
Package Quantity
25
Packaging
Bulk
Power Dissipation
200mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Technology
GAAS
Touchscreen
Infrared (IR)
Viewing Angle
18°
Wavelength
935nm
Compliance
RoHS
Compliant
Datasheet
TT OP133 Datasheet
Download the complete datasheet for TT OP133 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

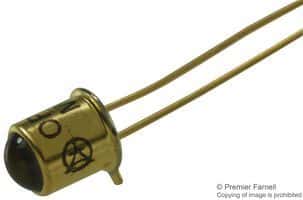

Product Images
