Transistor output slotted photointerrupter featuring a 1.91mm slot width and 890nm wavelength. This single-channel optical sensor offers a 30V collector-emitter breakdown voltage and a maximum collector current of 50mA. Designed for through-hole mounting, it operates within a temperature range of -40°C to 85°C and has a power dissipation of 100mW. The component is RoHS compliant and packaged in bulk.
MountingThrough Hole
Power100mW
Quick Jump:
Technical Specifications
TT OPB350L187 technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Forward Current
50mA
Lead Free
Lead Free
Max Collector Current
50mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Elements
1
Output Configuration
Phototransistor
Package Quantity
25
Packaging
Bulk
Power Dissipation
100mW
Reverse Breakdown Voltage
2V
RoHS Compliant
Yes
Series
OPB350
DC Rated Voltage
30V
Wavelength
890nm
Compliance
RoHS
Compliant
Datasheet
TT OPB350L187 Datasheet
Download the complete datasheet for TT OPB350L187 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

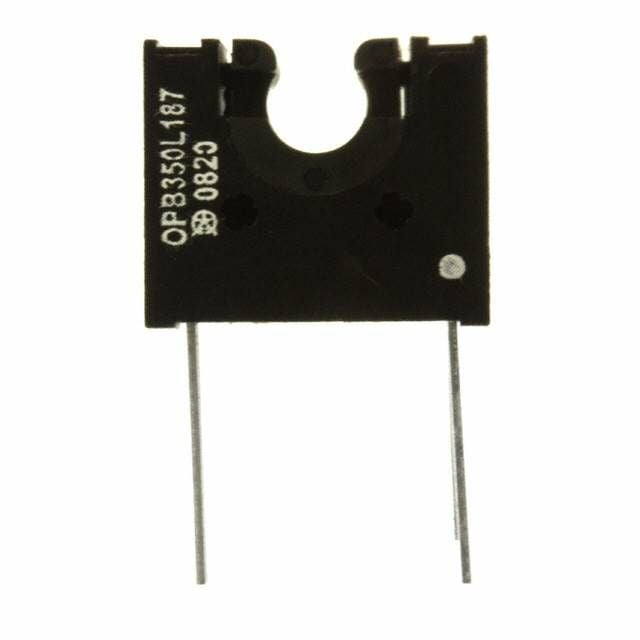

Product Images
