Red standard LED emitter featuring a 5mm (T-1 3/4) diffused dome lens with a 30° viewing angle. Delivers 7400mcd luminous intensity at a 624nm wavelength, operating with a 30mA forward current and a 5V reverse voltage. Housed in a lead-free, RoHS compliant plastic package with radial leads for through-hole mounting. Maximum power dissipation is 120mW, with an operating temperature range of -40°C to 100°C.
PackageRadial
MountingThrough Hole
Power120mW
Quick Jump:
Technical Specifications
TT OVLFR3C7 technical specifications.
General
| Package/Case | Radial |
| Color | Red |
| Depth | 5.05mm |
| Forward Current | 30mA |
| Height | 8.7mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Lead Length | 23.9mm |
| Length | 5.05mm |
| Lens Color | Colorless |
| Lens Style | Dome, Round, Diffused, Colorless, Circular, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 7400mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 78mW |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Package Quantity | 500 |
| Packaging | Bulk |
| Power Dissipation | 120mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Angle | 30° |
| Wavelength | 624nm |
| Width | 5.05mm |
Compliance
| RoHS | Compliant |
Datasheet
TT OVLFR3C7 Datasheet
Download the complete datasheet for TT OVLFR3C7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

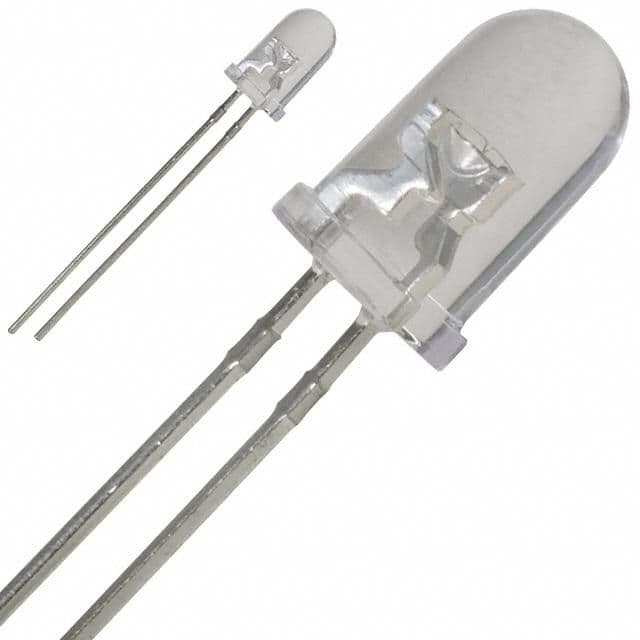

Product Images
