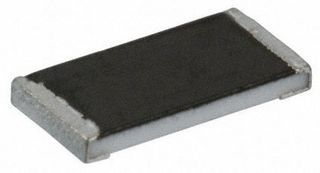

![SMD Chip Resistor, 0805 [2012 Metric], 2.7 kohm, PCF Series, 100 V, Thin Film, 100 mW](https://static.datasheets.com/image/9666860-tt-pcf0805-13-2k7-b-t1-image.jpg)
Quick Jump:
Technical Specifications
TT PCF0805-13-2K7-B-T1 technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| Resistance | 2.7kR |
| Resistance Tolerance | 0.1% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | PCF |
| Tolerance | 0.1% |
| Voltage Rating | 100V |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 100V |
| Width | 1.25mm |
Compliance
| RoHS | Compliant |
Datasheet
TT PCF0805-13-2K7-B-T1 Datasheet
Download the complete datasheet for TT PCF0805-13-2K7-B-T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
