Aluminum electrolytic capacitor, polarized, with a 100µF capacitance and 50V DC rated voltage. Features a 20% tolerance, 230mA ripple current, and 3µA leakage current. Operating temperature range is -40°C to 105°C with a 2000-hour life expectancy. Radial package with SMD/SMT termination, cylindrical construction, 8mm diameter, 10mm height, and 3.1mm lead pitch. RoHS compliant and lead-free.
PackageRadial
Voltage50V
Capacitance100uF
Voltage Rating50V
Quick Jump:
Technical Specifications
United Chemi-Con EMVE500ADA101MHA0G technical specifications.
General
Body Height
10mm
Capacitance
100uF
Package/Case
Radial
Construction
Cylindrical
Diameter
8mm
Dielectric Material
Aluminium
Height
10mm
Height - Seated (Max)
0.394inch
Lead Diameter
1.1mm
Lead Free
Lead Free
Lead Pitch
3.1mm
Leakage Current
3uA
Length
0.39inch
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
230mA
Ripple Current (AC)
230mA
RoHS Compliant
Yes
Series
MVE
Termination
SMD/SMT
Tolerance
20%
Voltage
50V
Voltage Rating
50V
DC Rated Voltage
50V
Width
8.3mm
Compliance
RoHS
Compliant
Datasheet
United Chemi-Con EMVE500ADA101MHA0G Datasheet
Download the complete datasheet for United Chemi-Con EMVE500ADA101MHA0G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

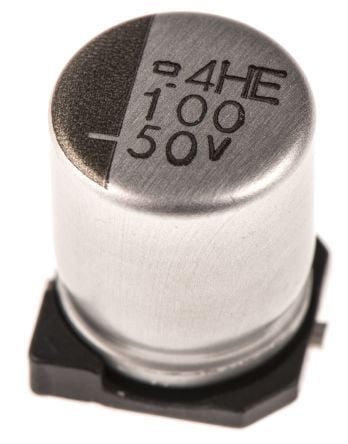

Product Images
