Polarized aluminum electrolytic capacitor with 470µF capacitance and 25V DC rated voltage. Features a 20% tolerance, 85°C maximum operating temperature, and 2000 hours of life at rated voltage. This radial component has a 5mm lead pitch, 0.6mm lead diameter, and tin contact plating, designed for through-hole mounting. It offers a ripple current of 545mA at 120kHz and is RoHS compliant.
PackageRadial
Voltage25V
Capacitance470uF
Voltage Rating25V
Quick Jump:
Technical Specifications
United Chemi-Con ESMG250ELL471MJC5S technical specifications.
General
Capacitance
470uF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Diameter
10mm
Dielectric Material
Aluminium
Dissipation Factor
16%
Height
12.5mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Life (Hours)
2000Hour
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
2000
Packaging
Bulk
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
545mA
RoHS Compliant
Yes
Series
SMG
Termination
Radial
Test Frequency
120kHz
Tolerance
20%
Voltage
25V
Voltage Rating
25V
DC Rated Voltage
25V
Compliance
RoHS
Compliant
Datasheet
United Chemi-Con ESMG250ELL471MJC5S Datasheet
Download the complete datasheet for United Chemi-Con ESMG250ELL471MJC5S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

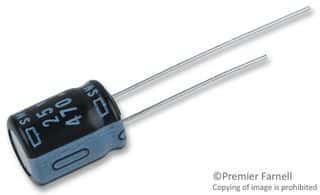

Product Images
