Single, round, clear light pipe for panel mounting. Features a 6mm flat round lens, 0.25-inch diameter, and a 9.8mm body length. SMD/SMT package with a total length of 11.17mm. Lead-free and RoHS compliant. Bulk packaging contains 1000 units.
PackageSMD/SMT
MountingPanel, Press-Fit
Quick Jump:
Technical Specifications
VCC Chml 7611D2-S technical specifications.
General
Body Length
9.8mm
Package/Case
SMD/SMT
Color
Clear
Diameter
0.25inch
Lead Free
Lead Free
Length
11.17mm
Lens Size
6mm
Lens Style
Round, Flat
Mount
Panel, Press-Fit
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
7611
Compliance
RoHS
Compliant
Datasheet
VCC Chml 7611D2-S Datasheet
Download the complete datasheet for VCC Chml 7611D2-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

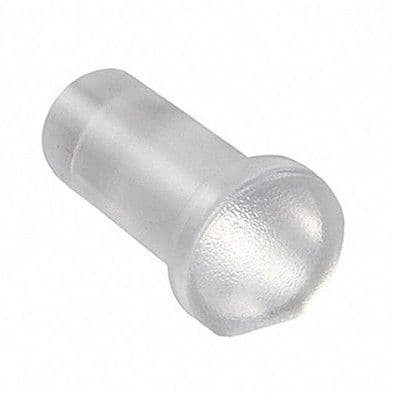

Product Images
