PackageCeramic
Capacitance68pF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Vishay 10TCU-Q68 technical specifications.
General
Capacitance
68pF
Package/Case
Ceramic
Diameter
9.4mm
Lead Pitch
6.4mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Package Quantity
500
Series
561R
Termination
Radial
Thickness
3.96mm
Tolerance
5%
Voltage Rating
1kV
DC Rated Voltage
1kV
Compliance
RoHS
Not Compliant
Datasheet
Vishay 10TCU-Q68 Datasheet
Download the complete datasheet for Vishay 10TCU-Q68 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

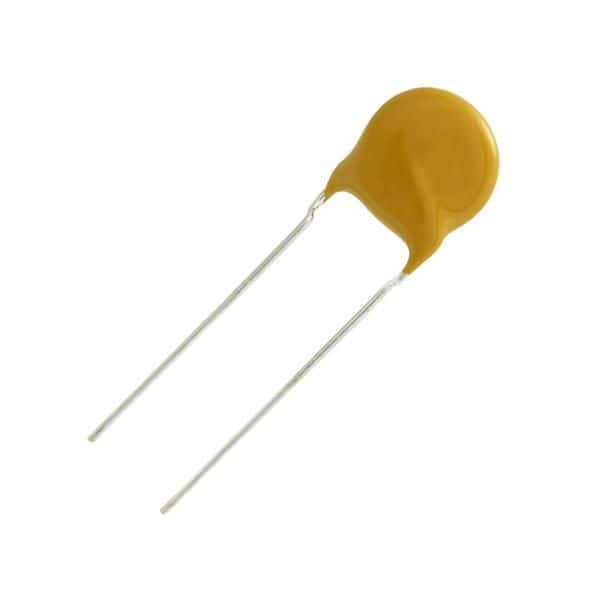

Product Images
