Metallized film capacitor featuring polypropylene dielectric, 10nF capacitance, and 1kV DC rated voltage. This radial leaded component offers a 20% tolerance and operates across a wide temperature range of -55°C to 105°C. Designed for through-hole mounting, it has a 15mm lead pitch and tin-matte contact plating. RoHS compliant and suitable for general applications.
PackageRadial
Capacitance10nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay BFC233660103 technical specifications.
General
Capacitance
10nF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin, Matte
Depth
5mm
Diameter
5mm
Dielectric
PP
Dielectric Material
PP
Height
11mm
Height - Seated (Max)
0.433inch
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
15mm
Length
17.5mm
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MKP336 6
Termination
Radial
Tolerance
20%
Voltage Rating (AC)
300V
DC Rated Voltage
1kV
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Vishay BFC233660103 Datasheet
Download the complete datasheet for Vishay BFC233660103 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

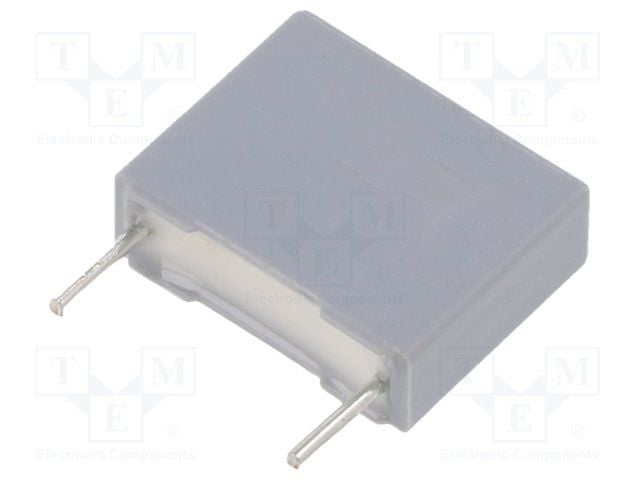

Product Images
