Technical Specifications
Vishay CNY17-3S-TA1 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
300mV
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
200%
Forward Current
60mA
Input Type
DC
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Output Current per Channel
150mA
Output Voltage
70V
Package Quantity
1000
Packaging
Tape and Reel
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay CNY17-3S-TA1 Datasheet
Download the complete datasheet for Vishay CNY17-3S-TA1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

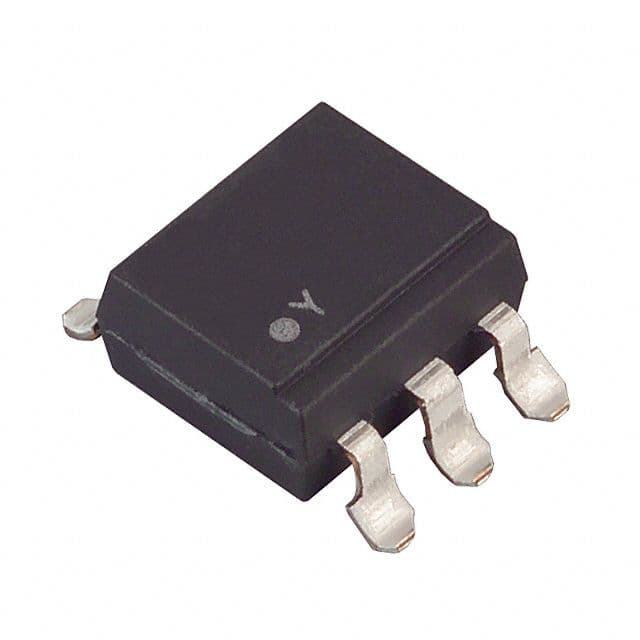

Product Images
