General purpose optocoupler featuring DC input and a single-channel transistor output. Offers 5kV isolation voltage and a 70V collector-emitter voltage. Maximum collector current is 100mA with a 200% current transfer ratio. Packaged in a 6-pin PDIP SMD for surface mounting, operating from -55°C to 100°C.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Vishay CNY17-3X007 technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 200% |
| Forward Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CNY17-3X007 Datasheet
Download the complete datasheet for Vishay CNY17-3X007 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

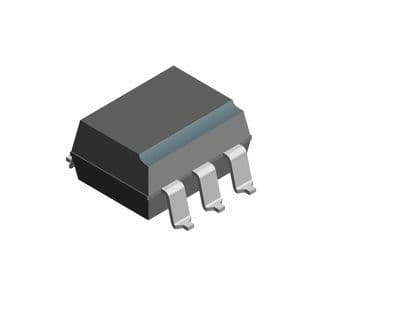

Product Images
