High-performance optocoupler featuring 5kV isolation voltage and a single transistor output channel. This surface-mount device offers a 70V collector-emitter voltage, 150mA maximum collector current, and a 200% current transfer ratio. Operating from -55°C to 100°C, it is RoHS compliant and lead-free, with a 250mW power dissipation.
PackageSMD/SMT
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Vishay CNY17F-3S technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
200%
Fall Time
10000ns
Forward Current
60mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Collector Current
150mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current per Channel
150mA
Output Voltage
70V
Package Quantity
65
Packaging
Rail/Tube
Power Dissipation
250mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay CNY17F-3S Datasheet
Download the complete datasheet for Vishay CNY17F-3S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

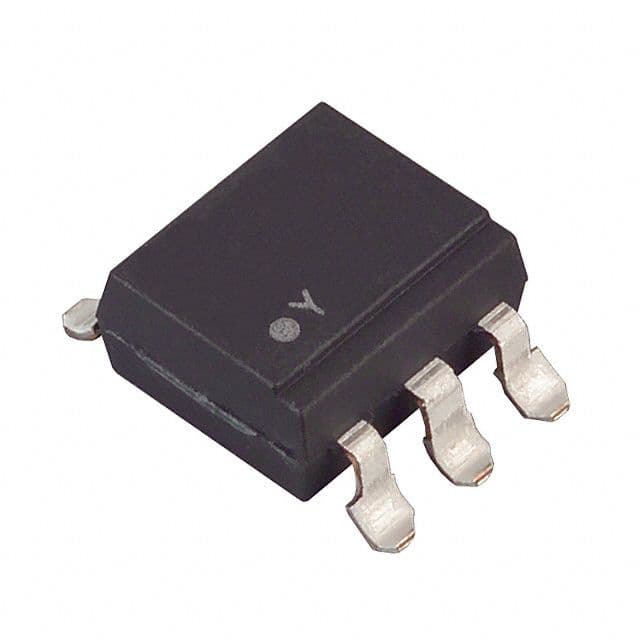

Product Images
