General purpose optocoupler featuring a phototransistor output with no base connection. Offers a 70V collector-emitter voltage (VCEO) and 100mA maximum collector current. Achieves 5.3kV isolation voltage with a 320% current transfer ratio. Designed for through-hole mounting in a PDIP package, operating from -55°C to 110°C.
PackagePDIP
MountingThrough Hole
Power150mW
Quick Jump:
Technical Specifications
Vishay CNY17F-4X006 technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
320%
Forward Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
150mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
2000
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Series
CNY
Compliance
RoHS
Compliant
Datasheet
Vishay CNY17F-4X006 Datasheet
Download the complete datasheet for Vishay CNY17F-4X006 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

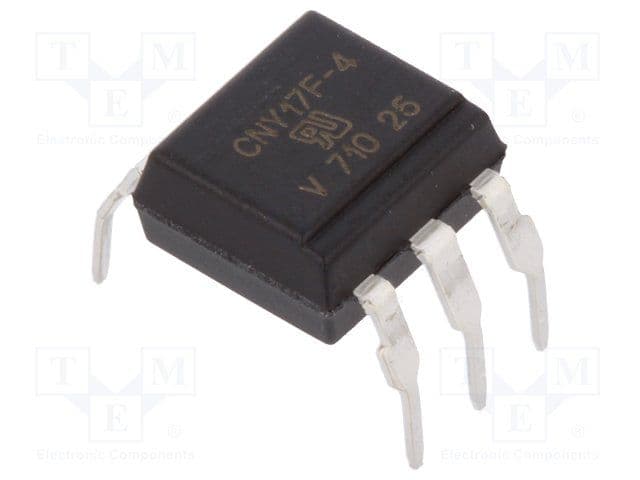

Product Images
