Surface mount thick film fixed resistor, 0.1W power rating, 360 ohm resistance with 1% tolerance. Features a 75V voltage rating, 100ppm/°C temperature coefficient, and operates from -55°C to 155°C. Packaged in a 0603 (1608 metric) case code with tin plating, this component is AEC-Q200 qualified and RoHS compliant.
Package0603
Resistance360R
Voltage Rating75V
Quick Jump:
Technical Specifications
Vishay CRCW0603360RFKEA technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Rectangular
Contact Plating
Tin
Depth
0.85mm
Features
Automotive AEC-Q200
Height
0.45mm
Lead Free
Lead Free
Length
1.55mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Military Standard
Not
Number of Terminations
2
Package Quantity
5000

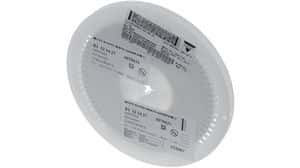

Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
360R
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
75V
DC Rated Voltage
75V
Weight
7.1E-05oz
Width
0.85mm
Working Voltage
75V
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW0603360RFKEA Datasheet
Download the complete datasheet for Vishay CRCW0603360RFKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
