Single-channel optocoupler with Triac AC output, featuring an 800V maximum output voltage and 300mA RMS output current. Designed for zero-crossing and random phase applications, this component offers 5.3kV isolation voltage. It operates within a temperature range of -55°C to 100°C and requires a nominal input voltage of 1.16V with a 60mA forward current. Packaged in a 6-pin DIP for through-hole mounting.
PackageDIP
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Vishay IL4108 technical specifications.
General
Package/Case
DIP
Forward Current
60mA
Height
3.81mm
Hold Current
500uA
Isolation Voltage
5.3kV
Isolation Voltage-Max
5.3kV
Length
8.7mm
Max Input Current
60mA
Max Input Voltage
1.35V
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Current
300mA
Max Output Voltage
800V
Max Power Dissipation
500mW
Mount
Through Hole
Nominal Input Voltage
1.16V
Number of Channels
1
Number of Elements
1
Output Current
300mA
Package Quantity
2000
Packaging
Rail/Tube
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
6V
RMS Current (Irms)
300mA
Turn-On Delay Time
35us
Width
6.5mm
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay IL4108 Datasheet
Download the complete datasheet for Vishay IL4108 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

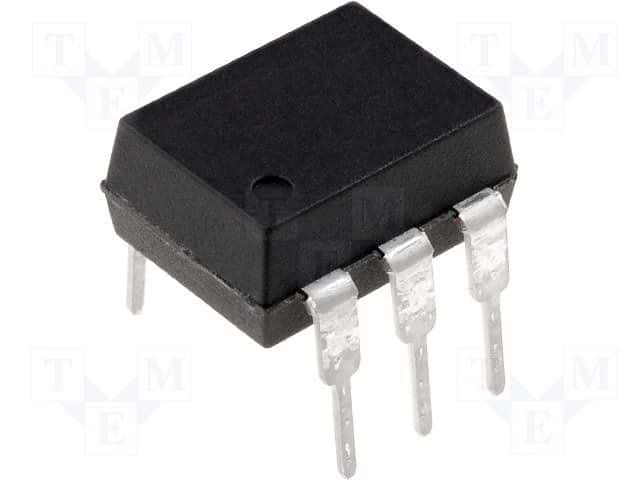

Product Images
