Four-channel DC optocoupler featuring Darlington output. Achieves 5.3kV isolation voltage with a 55V collector-emitter breakdown voltage. Offers a 400% current transfer ratio and a maximum output current of 125mA per channel. Housed in a 16-pin PDIP package for through-hole mounting, operating across a -55°C to 100°C temperature range.
PackagePDIP
MountingThrough Hole
Power500mW
Quick Jump:
Technical Specifications
Vishay ILQ55 technical specifications.
General
Approvals
UL
Package/Case
PDIP
Collector Emitter Breakdown Voltage
55V
Collector Emitter Saturation Voltage
1V
Collector Emitter Voltage (VCEO)
55V
Collector-emitter Voltage-Max
1V
Current Transfer Ratio
400%
Fall Time
35us
Forward Current
60mA
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Max Collector Current
125mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
55V
Max Power Dissipation
500mW
Mount
Through Hole
Number of Channels
4
Number of Elements
4
Output Current per Channel
125mA
Package Quantity
1000
Packaging
Rail/Tube
Power Dissipation
500mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
3V
Reverse Voltage (DC)
3V
DC Rated Voltage
1.25V
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay ILQ55 Datasheet
Download the complete datasheet for Vishay ILQ55 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

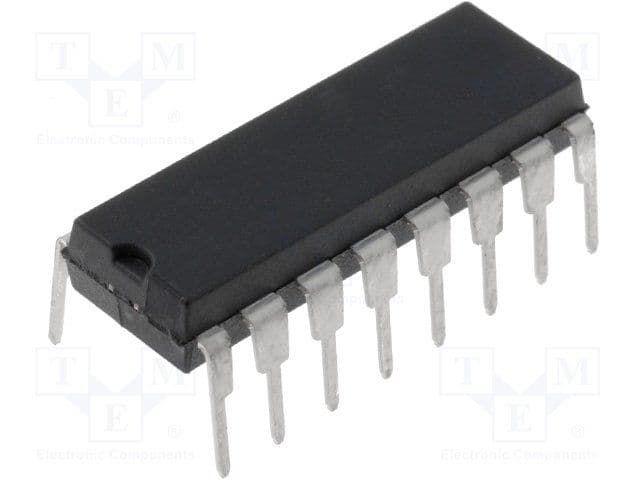

Product Images
