0.5-inch green alphanumeric LED display, featuring a DIP package for through-hole mounting. This segment display offers a luminous intensity of 2.2mcd with a 569nm wavelength, operating at a forward current of 20mA and a forward voltage of 2.1V. With a viewing area of 12.7mm height and 8.25mm length, it provides 17 elements and is RoHS compliant. Operating across a temperature range of -35°C to 85°C, it has a maximum power dissipation of 75mW.
PackageDIP
MountingThrough Hole
Power75mW
Quick Jump:
Technical Specifications
Vishay LTP-587G technical specifications.
General
Package/Case
DIP
Color
Green
Depth
16mm
Display Type
Segment
Forward Current
20mA
Illumination Color
Green
Lead Free
Lead Free
Length
25mm
Luminous Intensity
2.2mcd
Max Operating Temperature
85°C
Min Operating Temperature
-35°C
Max Power Dissipation
75mW
Mount
Through Hole
Number of Elements
17
Operating Supply Voltage
2.1V
Package Quantity
20
Packaging
Rail/Tube
Power Consumption
75mW
Power Dissipation
75mW
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Area (height)
12.7mm
Viewing Area Length
8.25mm
Wavelength
569nm
Width
16mm
Compliance
RoHS
Compliant
Datasheet
Vishay LTP-587G Datasheet
Download the complete datasheet for Vishay LTP-587G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

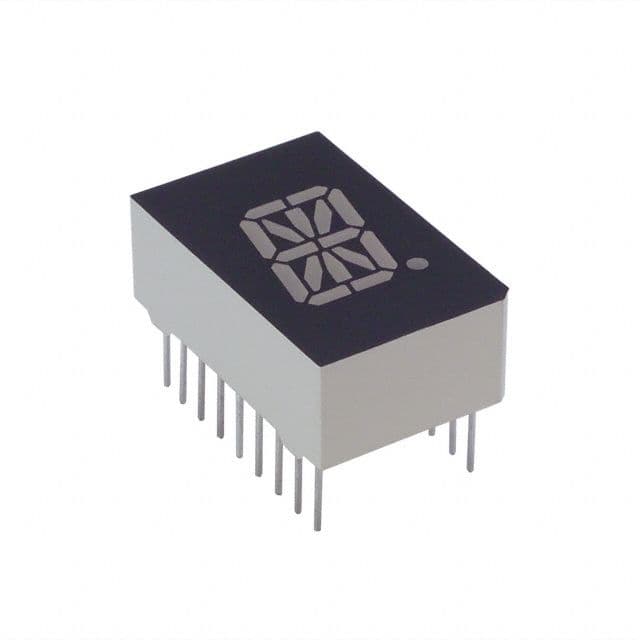

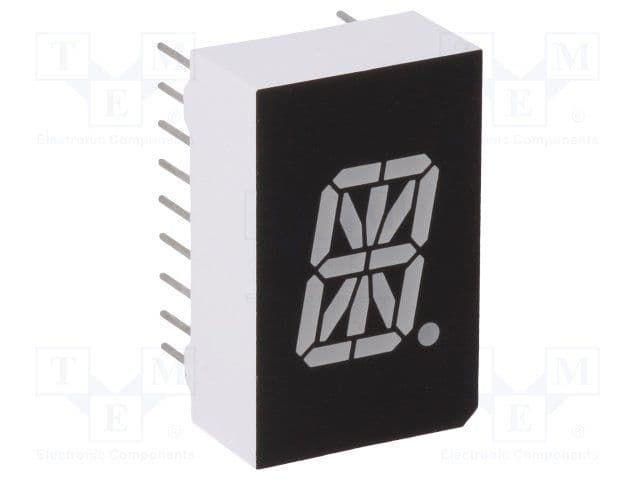

Product Images
