General purpose optocoupler featuring 5kV isolation voltage and a transistor output. This component offers a 35V collector-emitter voltage and a maximum collector current of 50mA. It operates with a forward current of 50mA and a current transfer ratio of 300%. The device is housed in a 4-pin DIP package, suitable for through-hole mounting, and is RoHS compliant.
PackagePDIP
MountingThrough Hole
Power200mW
Quick Jump:
Technical Specifications
Vishay LTV-814 technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 200mV |
| Collector Emitter Voltage (VCEO) | 35V |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 300% |
| Fall Time | 18000ns |
| Forward Current | 50mA |
| Height | 3.5mm |
| Input Type | AC |
| Isolation Voltage | 5kV |
| Isolation Voltage-Max | 5kV |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Collector Current | 50mA |
| Max Input Current | 50mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 35V |
| Max Power Dissipation | 200mW |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 35V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 6.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTV-814 Datasheet
Download the complete datasheet for Vishay LTV-814 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

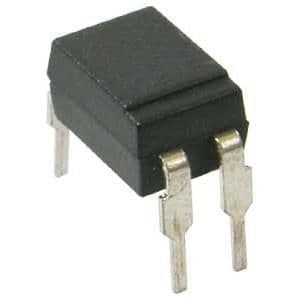

Product Images
