Technical Specifications
Vishay LTV-817A technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Collector-emitter Voltage-Max
200mV
Current Transfer Ratio
160%
Fall Time
18000ns
Forward Current
50mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-30°C
Max Output Voltage
35V
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Packaging
Rail/Tube
Power Dissipation
200mW
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay LTV-817A Datasheet
Download the complete datasheet for Vishay LTV-817A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

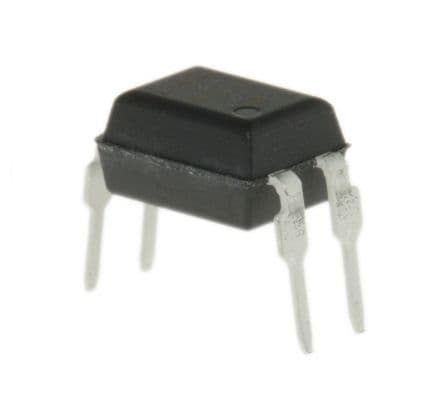

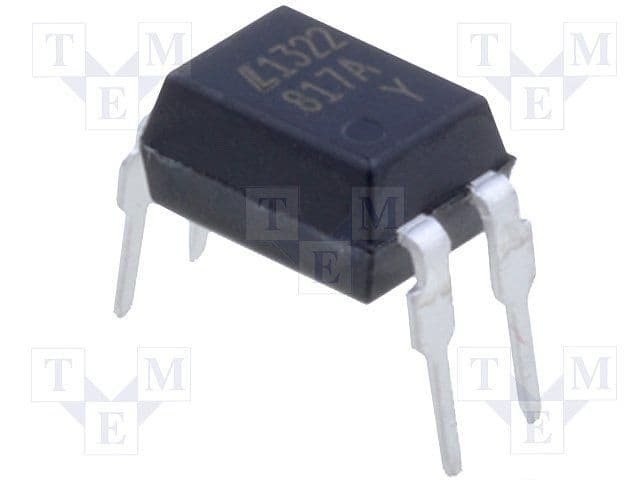

Product Images
