PackagePDIP
Voltage5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay LTV-817D technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
200mV
Collector-emitter Voltage-Max
200mV
Fall Time
3us
Input Type
DC
Isolation Voltage
5kV
Max Collector Current
30mA
Max Input Current
50mA
Max Operating Temperature
110°C
Min Operating Temperature
-30°C
Max Output Voltage
35V
Max Power Dissipation
200mW
Mount
Through Hole
Number of Channels
1
Output Current per Channel
50mA
Packaging
Rail/Tube
RoHS Compliant
Yes
Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Vishay LTV-817D Datasheet
Download the complete datasheet for Vishay LTV-817D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

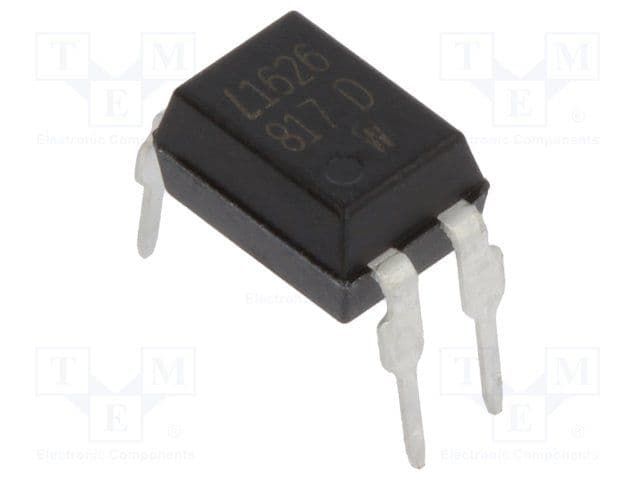

Product Images
