PackageDIP
MountingThrough Hole
Power70mW
Quick Jump:
Technical Specifications
Vishay LTV-817M-C technical specifications.
General
Package/Case
DIP
Collector Emitter Saturation Voltage
200mV
Collector Emitter Voltage (VCEO)
35V
Current Transfer Ratio
400%
Fall Time
18000ns
Forward Current
50mA
Input Type
DC
Isolation Voltage
5kV
Max Operating Temperature
110°C
Min Operating Temperature
-30°C
Mount
Through Hole
Number of Elements
1
Power Dissipation
70mW
Radiation Hardening
No
Reverse Breakdown Voltage
6V
Compliance
RoHS
Compliant
Datasheet
Vishay LTV-817M-C Datasheet
Download the complete datasheet for Vishay LTV-817M-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

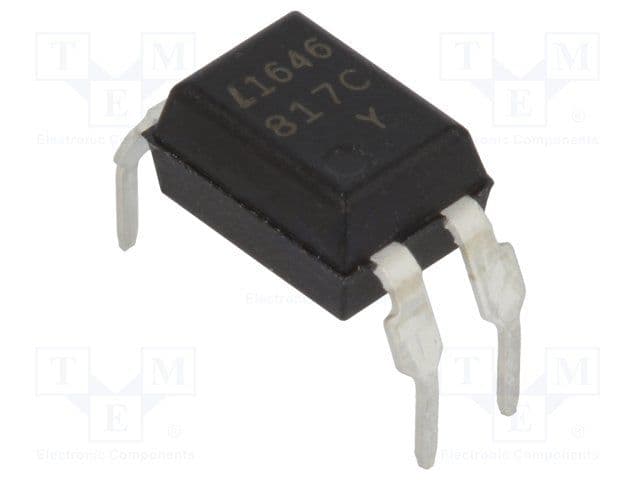

Product Images
