Technical Specifications
Vishay LTV-817S-TA1-A technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 200mV |
| Collector-emitter Voltage-Max | 200mV |
| Current Transfer Ratio | 160% |
| Forward Current | 20mA |
| Input Type | DC |
| Lead Free | Lead Free |
| Max Collector Current | 50mA |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 35V |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LTV-817S-TA1-A Datasheet
Download the complete datasheet for Vishay LTV-817S-TA1-A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

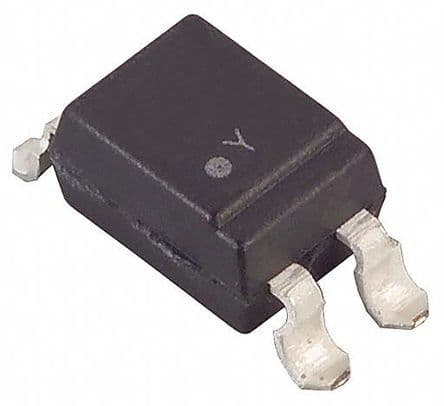

Product Images
