Single channel, transistor output optocoupler featuring a 70V collector-emitter voltage and 100mA maximum collector current. This surface mount device offers a 5.3kV isolation voltage and a current transfer ratio of 125%. With a 60mA forward current and 150mW power dissipation, it operates across a -55°C to 100°C temperature range.
PackageSMD/SMT
MountingSurface Mount, Through Hole
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH6106-2X001T technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 125% |
| Fall Time | 14us |
| Forward Current | 60mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount, Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 150mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SFH6106-2X001T Datasheet
Download the complete datasheet for Vishay SFH6106-2X001T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

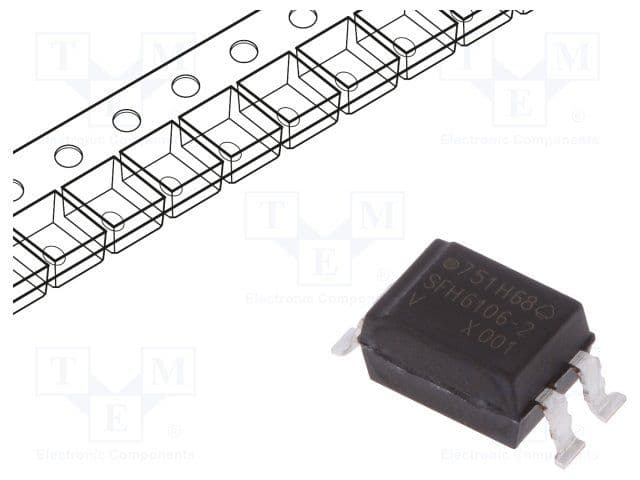

Product Images
