General purpose transistor output optocoupler featuring 5.3kV isolation voltage and 70V collector-emitter breakdown voltage. This 1-element device offers a 200% current transfer ratio with a 60mA forward current and 100mA maximum collector current. Designed for surface mount applications, it operates within a -55°C to 100°C temperature range and is UL approved.
PackageSMD/SMT
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications

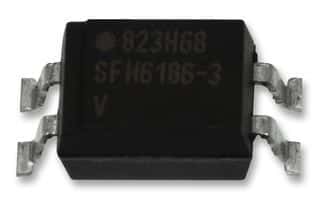

Vishay SFH6106-3 technical specifications.
General
Approvals
UL
Package/Case
SMD/SMT
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
200%
Forward Current
60mA
Height
3.81mm
Input Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Lead Free
Lead Free
Length
4.83mm
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
4000
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Voltage (DC)
6V
DC Rated Voltage
1.25V
Width
6.81mm
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SFH6106-3 Datasheet
Download the complete datasheet for Vishay SFH6106-3 to view detailed technical specifications.
