Surface mount optocoupler featuring 5.3kV isolation voltage and 70V collector-emitter voltage. Delivers 50mA output current per channel with a maximum collector current of 100mA and a forward current of 60mA. Operating temperature range spans -55°C to 100°C, with a maximum power dissipation of 150mW. This general-purpose component offers a 125% current transfer ratio.
PackageSMD/SMT
Voltage6V
MountingSurface Mount
Power150mW
Quick Jump:
Technical Specifications
Vishay SFH6156-2 technical specifications.
General
Package/Case
SMD/SMT
Collector Emitter Saturation Voltage
400mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
125%
Forward Current
60mA
Input Type
DC
Isolation Voltage
5.3kV
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
70V
Max Power Dissipation
150mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
150mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Voltage
6V
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay SFH6156-2 Datasheet
Download the complete datasheet for Vishay SFH6156-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

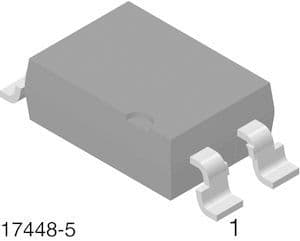

Product Images
