PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay SFH618A-4X001 technical specifications.
General
Package/Case
PDIP
Collector Emitter Saturation Voltage
400mV
Collector-emitter Voltage-Max
400mV
Current Transfer Ratio
320%
Input Type
DC
Max Collector Current
100mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Output Voltage
55V
Max Power Dissipation
150mW
Mount
Through Hole
Number of Channels
1
Output Current per Channel
50mA
Package Quantity
4000
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay SFH618A-4X001 Datasheet
Download the complete datasheet for Vishay SFH618A-4X001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

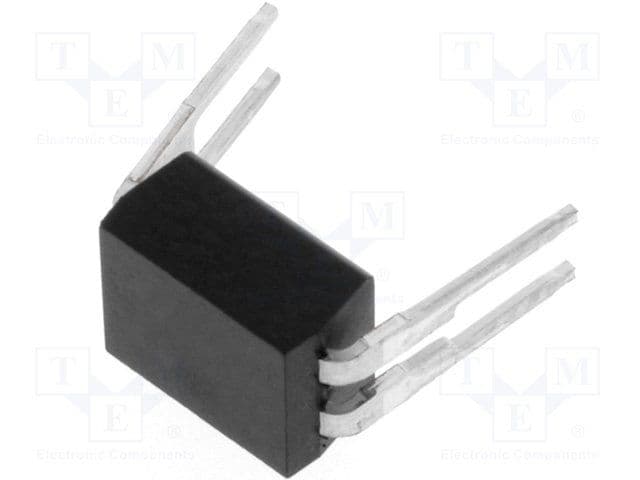

Product Images
