AC-input, single-channel optocoupler with transistor DC output. Features 5.3kV isolation voltage, 70V collector-emitter voltage, and 100mA max collector current. Offers a 200% current transfer ratio and 60mA forward current. Packaged in a 4-pin PDIP SMD for surface mounting, operating from -55°C to 100°C.
PackageSMD/SMT
MountingSurface Mount, PCB
Power250mW
Quick Jump:
Technical Specifications
Vishay SFH6206-2T technical specifications.
General
| Package/Case | SMD/SMT |
| Collector Emitter Saturation Voltage | 400mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 200% |
| Fall Time | 2s |
| Forward Current | 60mA |
| Input Type | AC |
| Isolation Voltage | 5.3kV |
| Isolation Voltage-Max | 5.3kV |
| Lead Free | Lead Free |
| Max Collector Current | 100mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 150mW |
| Mount | Surface Mount, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Vishay SFH6206-2T Datasheet
Download the complete datasheet for Vishay SFH6206-2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

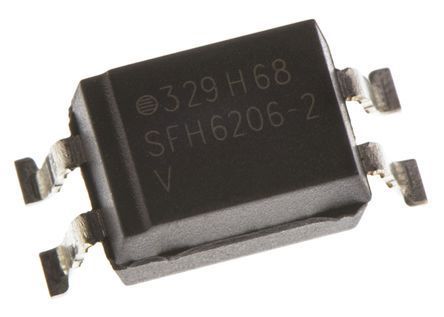

Product Images
