General purpose optocoupler featuring a phototransistor output and DC input. Achieves 5.3kV isolation voltage with a 1Mbps data rate. Offers a 30% current transfer ratio and 8mA output current per channel. Operates within a -55°C to 100°C temperature range, packaged in PDIP for through-hole mounting.
PackagePDIP
MountingThrough Hole, PCB
Power100mW
Quick Jump:
Technical Specifications
Vishay SFH6345 technical specifications.
General
| Package/Case | PDIP |
| Collector Emitter Saturation Voltage | 400mV |
| Collector-emitter Voltage-Max | 400mV |
| Current Transfer Ratio | 30% |
| Data Rate | 1Mbps |
| Forward Current | 25mA |
| Input Current | 16mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Isolation Voltage-Max | 5.3kV |
| Lead Free | Lead Free |
| Max Input Current | 25mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Output Voltage | 25V |
| Max Power Dissipation | 100mW |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 8mA |
| Output Current per Channel | 8mA |
| Output Type | Phototransistor |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage (DC) | 3V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Vishay SFH6345 Datasheet
Download the complete datasheet for Vishay SFH6345 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

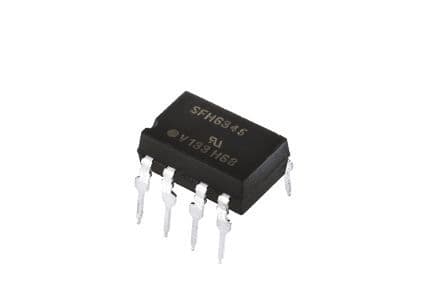

Product Images
