Metal film resistor with 10kΩ resistance and 1% tolerance. Features 0.5W power dissipation, 200V DC rated voltage, and axial leads for through-hole mounting. Operating temperature range from -55°C to 155°C. Cylindrical construction with tin contact plating. RoHS compliant.
PackageAxial
Resistance10kR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay SFR16S0001002FR500 technical specifications.
General
Package/Case
Axial
Construction
Cylindrical
Contact Plating
Tin
Diameter
1.9mm
Lead Free
Lead Free
Length
4.1mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Military Standard
Not
Number of Terminations
2
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
10kR
Resistance Tolerance
1%
Resistor Type
Metal Film
RoHS Compliant
Yes
Series
SFR16S
Termination
Axial
Tolerance
1%
Voltage Rating
200V
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Vishay SFR16S0001002FR500 Datasheet
Download the complete datasheet for Vishay SFR16S0001002FR500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

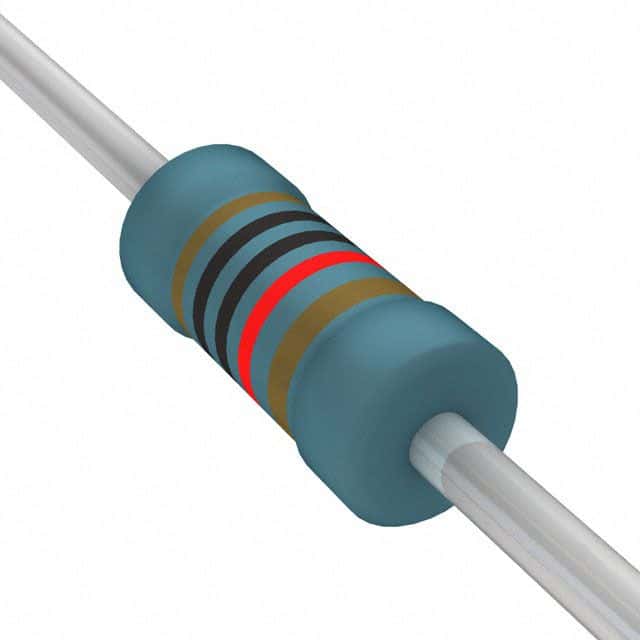

Product Images
