General purpose optocoupler featuring 5kV isolation voltage and a transistor output. Surface mountable in a 4-pin SOP package with a 10.2mm lead pitch. Offers a 70V collector-emitter breakdown voltage and a maximum collector current of 50mA. Features a 160% current transfer ratio and a 4.7µs fall time. Operates from -40°C to 100°C.
PackageSOP
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Vishay TCLT1007 technical specifications.
General
Package/Case
SOP
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
160%
Fall Time
4.7us
Forward Current
60mA
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Lead Pitch
10.2mm
Max Collector Current
50mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
70V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
250mW
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Row Spacing
2.54mm
DC Rated Voltage
70V
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay TCLT1007 Datasheet
Download the complete datasheet for Vishay TCLT1007 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

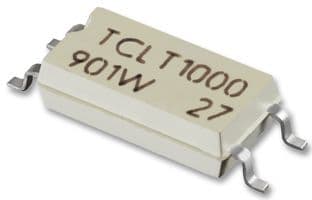

Product Images
