General purpose optocoupler featuring 5kV isolation voltage and a 1-channel, 1-element configuration. SOP package with surface mount capability. Offers a 260% current transfer ratio, 70V collector-emitter breakdown voltage, and 50mA maximum collector current. Operates within a -40°C to 100°C temperature range.
PackageSOP
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Vishay TCLT1108 technical specifications.
General
Package/Case
SOP
Collector Emitter Breakdown Voltage
70V
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
260%
Forward Current
60mA
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Lead Pitch
10.2mm
Max Collector Current
50mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
80V
Max Power Dissipation
250mW
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
250mW
Reach SVHC Compliant
Yes
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Row Spacing
1.27mm
DC Rated Voltage
1.25V
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay TCLT1108 Datasheet
Download the complete datasheet for Vishay TCLT1108 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

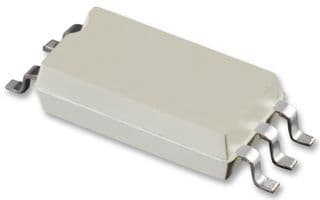

Product Images
