General purpose optocoupler featuring a single channel DC input and transistor DC output. This surface mount component offers 3.75kV isolation voltage and a 70V collector-emitter voltage. Key specifications include a 320% current transfer ratio, 50mA maximum collector current, and 250mW power dissipation. Operating temperature range is -40°C to 100°C.
PackageSOP
Voltage6V
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Vishay TCMT1104 technical specifications.
General
| Package/Case | SOP |
| Collector Emitter Saturation Voltage | 300mV |
| Collector Emitter Voltage (VCEO) | 70V |
| Collector-emitter Voltage-Max | 300mV |
| Current Transfer Ratio | 320% |
| Fall Time | 4.7us |
| Forward Current | 60mA |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Max Collector Current | 50mA |
| Max Input Current | 60mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 70V |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 50mA |
| Output Voltage | 70V |
| Packaging | Tape and Reel |
| Power Dissipation | 250mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage (DC) | 6V |
| RoHS Compliant | Yes |
| Voltage | 6V |
| DC Rated Voltage | 70V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TCMT1104 Datasheet
Download the complete datasheet for Vishay TCMT1104 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

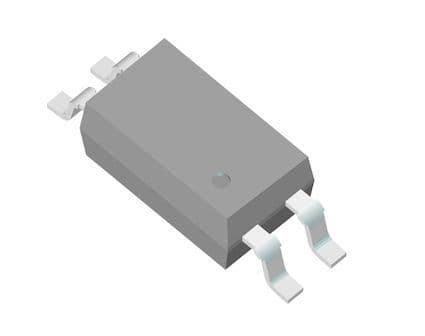

Product Images
