Single-channel DC input optocoupler with transistor output, featuring a 70V collector-emitter voltage and 50mA maximum collector current. This surface-mount component offers a 300% current transfer ratio and 3.75kV isolation voltage. Operating within a -40°C to 100°C temperature range, it has a 250mW power dissipation and is packaged in a 4-pin Mini-Flat SOP for tape and reel delivery.
PackageSOP
Voltage6V
MountingSurface Mount, PCB
Power250mW
Quick Jump:
Technical Specifications
Vishay TCMT1106 technical specifications.
General
Package/Case
SOP
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
70V
Collector-emitter Voltage-Max
300mV
Current Transfer Ratio
300%
Fall Time
4.7s
Forward Current
60mA
Input Current
50mA
Input Type
DC
Isolation Voltage
3.75kV
Isolation Voltage-Max
3.75kV
Lead Free
Lead Free
Max Collector Current
50mA
Max Input Current
60mA
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
70V
Max Power Dissipation
250mW
Mount
Surface Mount, PCB
Number of Channels
1
Number of Elements
1
Output Current per Channel
50mA
Output Voltage
70V
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
250mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
6V
RoHS Compliant
Yes
Voltage
6V
DC Rated Voltage
70V
Compliance
RoHS
Compliant
Datasheet
Vishay TCMT1106 Datasheet
Download the complete datasheet for Vishay TCMT1106 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

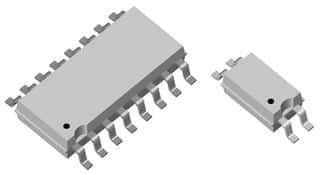

Product Images
