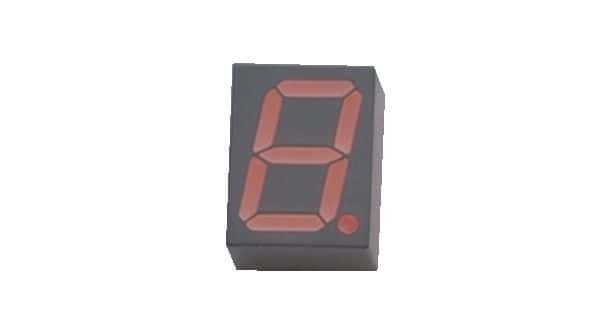

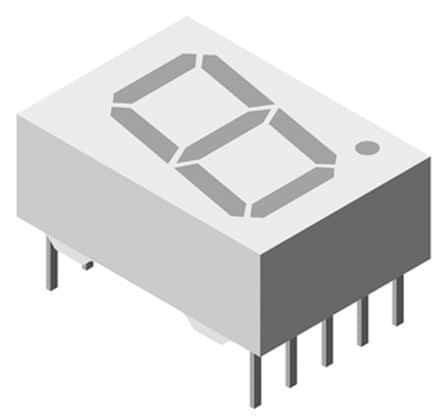

Red 7-segment LED display module with a 6mm character width, featuring 8 elements and 1 position. This through-hole component offers a luminous intensity of 3.6mcd at a forward current of 1mA. Operating within a temperature range of -40°C to 85°C, it has a maximum power dissipation of 185mW and a reverse voltage rating of 5V. The display is housed in a DIP package with a viewing area of 7mm height and 4.7mm length.
PackageDIP
MountingThrough Hole
Power185mW
Quick Jump:
Technical Specifications
Vishay TDSR1060 technical specifications.
General
Package/Case
DIP
Character Width
6mm
Color
Red
Depth
9.7mm
Display Type
Segment
Forward Current
1mA
Height
0.5inch
Length
12.8mm
Luminous Intensity
3.6mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
185mW
Mount
Through Hole
Number of Characters
1
Number of Elements
8
Number of Positions
1
Number of Segments
7
Package Quantity
400
Power Dissipation
185mW
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Viewing Area (height)
7mm
Viewing Area Length
4.7mm
Width
0.372inch
Compliance
RoHS
Compliant
Datasheet
Vishay TDSR1060 Datasheet
Download the complete datasheet for Vishay TDSR1060 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
