Infrared (IR) LED emitter featuring 870nm wavelength and 100mA forward current. This single-element, top-view emitter utilizes GAAS technology and offers a 20° viewing angle with 1800mW/sr radiant intensity. Encased in a diffused, colorless circular lens within a T-1 3/4 package, it supports through-hole mounting and operates from -40°C to 85°C. The component is RoHS compliant and supplied in bulk packaging.
PackageRadial
MountingThrough Hole
Power180W
Quick Jump:
Technical Specifications
Vishay TSFF5210 technical specifications.
General
Package/Case
Radial
Depth
5.8mm
Forward Current
100mA
Lead Free
Lead Free
Length
5.8mm
Lens Style
Circular, Round, Diffused, Colorless
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Elements
1
Number of LEDs
1
Orientation
Top View
Package Quantity
4000
Packaging
Bulk
Power Dissipation
180W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
RoHS Compliant
Yes
Technology
GAAS
Touchscreen
Infrared (IR)
Viewing Angle
20°
Wavelength
870nm
Compliance
RoHS
Compliant
Datasheet
Vishay TSFF5210 Datasheet
Download the complete datasheet for Vishay TSFF5210 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

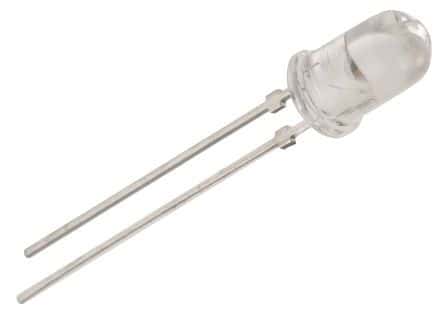

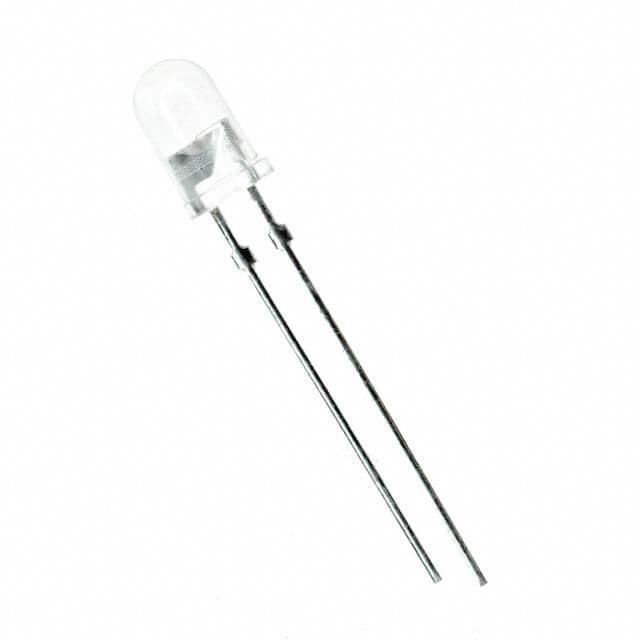

Product Images
