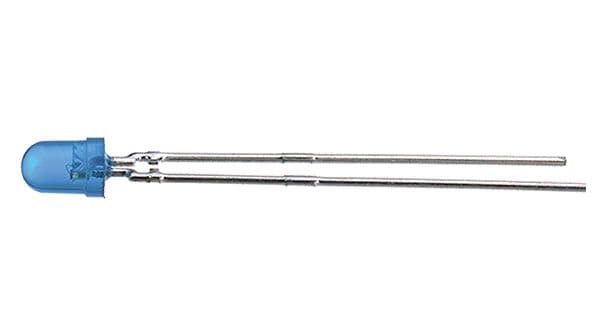

Infrared LED emitter operating at 950nm wavelength. Features a 100mA forward current rating and 5V reverse voltage. This through-hole component has a circular, diffused lens style and a 44° viewing angle. Capacitance is 30pF with a fall time of 800ns. Packaged in bulk, this lead-free, RoHS compliant device is suitable for a wide operating temperature range of -55°C to 85°C.
PackageRadial
Capacitance30pF
Current Rating150A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay TSUS5400 technical specifications.
General
Capacitance
30pF
Package/Case
Radial
Current Rating
150A
Depth
5.8mm
Fall Time
800ns
Forward Current
100mA
Height
8.7mm
Lead Free
Lead Free
Length
5.8mm
Lens Style
Circular, Round, Diffused
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Elements
1
Number of LEDs
1
Orientation
Top View
Package Quantity
4000
Packaging
Bulk
Power Dissipation
210W
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Voltage
5V
Reverse Voltage (DC)
5V
RoHS Compliant
Yes
Technology
GAAS
Viewing Angle
44°
DC Rated Voltage
5V
Wavelength
950nm
Width
5.8mm
Compliance
RoHS
Compliant
