W+P Products
635-24-1-00

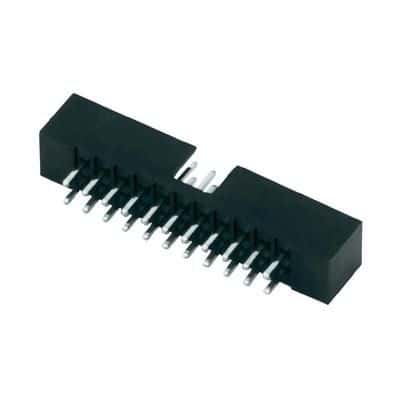

W & P Products 635-24-1-00 Tray Terminal Strip Grid pitch: 2.00 mm Number of pins: 2 x 12
Quick Jump:
Technical Specifications
W+P Products 635-24-1-00 technical specifications.
General
Contact Material
Gold
Height
8.6mm
Insulation Material
Thermoplastic
Length
31.2mm
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Pitch
2mm
Width
5.5mm
Compliance
RoHS
Not Compliant
Datasheet
W+P Products 635-24-1-00 Datasheet
Download the complete datasheet for W+P Products 635-24-1-00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
