Wago
713-1430
Pin strip (standard) 1735 Total number of pins 20 WAGO 713-1430 Contact spacing: 3.50 mm 25 pc(s)
Quick Jump:
Technical Specifications
Wago 713-1430 technical specifications.
General
Color
Black
Contact Material
Copper
Contact Plating
Tin
Flammability Rating
UL94 V-0
Height
17.1mm
Housing Color
Black
Insulation Material
Polyphthalamide
Lead Free
Lead Free
Length
13.5mm
Max Operating Temperature
100°C
Min Operating Temperature
-60°C
Number of Poles
20
Number of Rows
2
RoHS Compliant
Yes
Series
1735
Termination
Solder
Width
36.5mm
Compliance
RoHS
Compliant
Datasheet
Wago 713-1430 Datasheet
Download the complete datasheet for Wago 713-1430 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

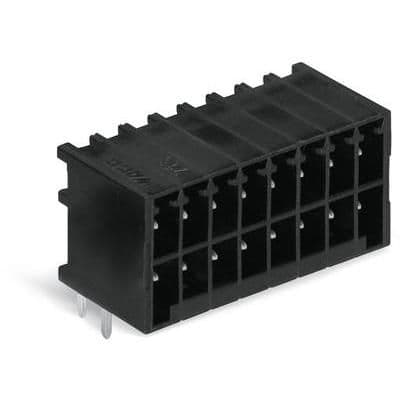

Product Images
