This feed-through terminal block connector features a straight, through-hole mount design with 4 positions across 4 rows and 2 levels, accommodating 2 circuits. It supports wire gauges from 12AWG to 30AWG, with a maximum current rating of 24A and a voltage rating of 6kV. Constructed with beige thermoplastic insulation, it offers a 21A current and 300V voltage capacity, meeting UL94 V-0 flammability standards. Approved by IEC, CSA, CE, and UR, this RoHS compliant component is designed for reliable electrical connections.
Voltage300V
Current21A
Voltage Rating6kV
Current Rating24A
Quick Jump:
Technical Specifications
Weidmuller 1041100000 technical specifications.
General
Approvals
IEC, CSA, CE, UR
Color
Beige
Current
21A
Current Rating
24A
Flammability Rating
UL94 V-0
Height
62.5mm
Housing Color
Beige
Insulation Material
Thermoplastic
Lead Free
Contains Lead
Length
65.4mm
Mount
Through Hole
Number of Circuits
2
Number of Contacts
4
Number of Levels
2
Number of Positions
4
Number of Rows
4
Orientation
Straight
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
W
Terminal Width
5.1mm
Termination
Screw
Voltage
300V
Voltage Rating
6kV
Weight
9.27g
Width
5.1mm
Wire Gauge (Max)
30AWG
Wire Gauge (Min)
12AWG
Wire/Cable Gauge
30AWG
Compliance
RoHS
Compliant
Datasheet
Weidmuller 1041100000 Datasheet
Download the complete datasheet for Weidmuller 1041100000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

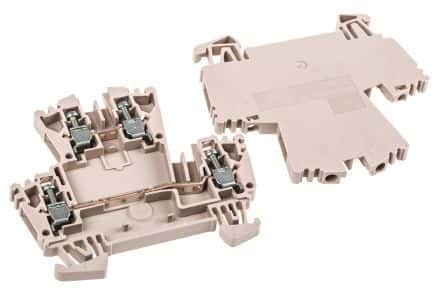

Product Images
