16-contact female socket connector for rack and panel applications. Features straight, 2-row configuration with screw termination. Rated for 500V and 16A, with a maximum operating temperature of 125°C. Constructed from copper alloy with silver-plated copper contacts. Compliant with RoHS and UL94 V-0 flammability rating.
Voltage Rating500V
Current Rating16A
MountingPanel
Quick Jump:
Technical Specifications
Weidmuller 1207700000 technical specifications.
General
Approvals
CSA
Contact Material
Copper Alloy, Copper
Contact Plating
Silver
Current Rating
16A
Flammability Rating
UL94 V-0
Gender
Female
Height
35.2mm
Lead Free
Lead Free
Length
84.5mm
Material
Copper Alloy
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Panel
Number of Poles
16
Number of Rows
2
Orientation
Straight
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Rockstar® HE
Termination
Screw
Voltage Rating
500V
Width
34mm
Compliance
RoHS
Compliant
Datasheet
Weidmuller 1207700000 Datasheet
Download the complete datasheet for Weidmuller 1207700000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

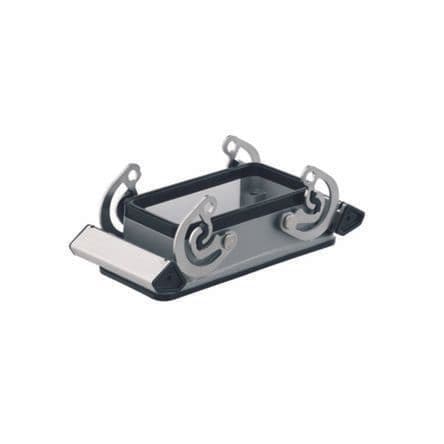

Product Images
