18-position, 1-row, ZIF/LIF flexible flat cable connector with 3.5mm pitch. Features tin-plated copper alloy contacts, through-hole mounting, and a 10A current rating. Rated for 300V, this orange, UL94 V-0 flammability rated component is lead-free and RoHS compliant.
Voltage300V
Current10A
Voltage Rating300V
Current Rating13A
Quick Jump:
Technical Specifications
Weidmuller 1643490000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Orange |
| Contact Material | CuSn |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 13A |
| Flammability Rating | UL94 V-0 |
| Height | 13mm |
| Housing Color | Orange |
| Lead Free | Lead Free |
| Length | 78.8mm |
| Mount | Through Hole |
| Number of Contacts | 18 |
| Number of Levels | 1 |
| Number of Poles | 18 |
| Number of Positions | 18 |
| Number of Positions Per Level | 18 |
| Number of Rows | 1 |
| Package Quantity | 20 |
| Packaging | Box |
| Pitch | 0.138inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Omnimate SL |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 13.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1643490000 Datasheet
Download the complete datasheet for Weidmuller 1643490000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

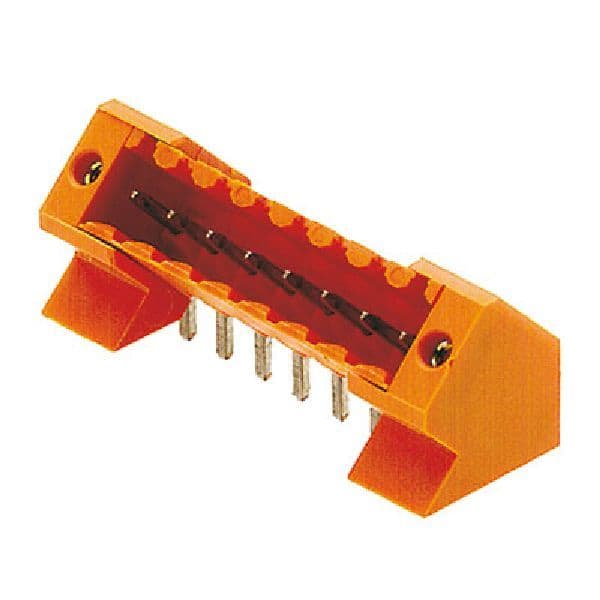

Product Images
