General purpose terminal block, 12-position, single-level, straight orientation, cable mountable. Features 10A current rating, 300V voltage rating, and screw termination. Constructed with copper alloy contacts plated in tin, housed in orange UL94 V-0 flammability rated plastic. Accepts wire gauges from 12AWG to 26AWG.
Voltage300V
Current10A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
Weidmuller 1701890000 technical specifications.
General
| Approvals | CSA, UR |
| Color | Orange |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 15A |
| Flammability Rating | UL94 V-0 |
| Height | 26.8mm |
| Housing Color | Orange |
| Lead Free | Lead Free |
| Length | 90mm |
| Mount | Free Hanging, Cable |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Levels | 1 |
| Number of Poles | 12 |
| Number of Positions | 12 |
| Number of Positions Per Level | 12 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Box |
| Pitch | 0.295inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Omnimate BLZ |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 14.3mm |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 12AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1701890000 Datasheet
Download the complete datasheet for Weidmuller 1701890000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

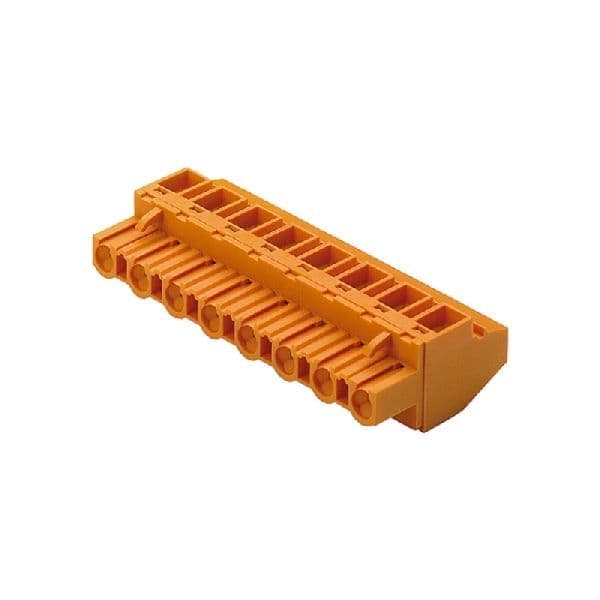

Product Images
