Shrouded Header, 6 Positions, 3.81mm Pitch, Right Angle Through-Hole Solder Termination. Features a 6-pole configuration with a 1-level, 1-row design. Rated for 10A and 300V, with a maximum operating temperature of 120°C. Constructed with a black Nylon insulation housing and Copper Alloy contacts with Tin plating. UL94 V-0 flammability rating and IP20 protection.
Voltage300V
Current10A
Voltage Rating300V
Current Rating17.5A
Quick Jump:
Technical Specifications
Weidmuller 1793370000 technical specifications.
General
| Approvals | CSA, cURus |
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 17.5A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 6.9mm |
| Housing Color | Black |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 32.5mm |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -50°C |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Levels | 1 |
| Number of Poles | 6 |
| Number of Positions | 6 |
| Number of Positions Per Level | 6 |
| Number of Rows | 1 |
| Packaging | Box |
| Pitch | 3.81mm |
| Radiation Hardening | No |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Omnimate SC |
| Termination | Solder |
| Voltage | 300V |
| Voltage Rating | 300V |
| Width | 9.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1793370000 Datasheet
Download the complete datasheet for Weidmuller 1793370000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

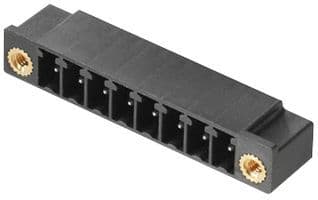

Product Images
