7-position, 1-row, vertical ZIF/LIF connector with 5mm pitch. Features tin-plated copper alloy contacts, a black UL94 V-0 rated housing, and through-hole mounting. Rated for 10A and 300V, this male connector is RoHS compliant and suitable for flexible flat cable applications.
Voltage300V
Current10A
Voltage Rating300V
Current Rating15A
Quick Jump:
Technical Specifications
Weidmuller 1796530000 technical specifications.
General
Approvals
CSA, UR
Color
Black
Contact Material
CuSn
Contact Plating
Tin
Current
10A
Current Rating
15A
Flammability Rating
UL94 V-0
Gender
Male
Height
12mm
Housing Color
Black
Lead Free
Lead Free
Length
35mm
Mount
Through Hole
Number of Contacts
7
Number of Levels
1
Number of Poles
7
Number of Positions
7
Number of Positions Per Level
7
Number of Rows
1
Orientation
Vertical
Package Quantity
50
Packaging
Box
Pitch
0.197inch
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Omnimate SL-SMT
Termination
Solder
Voltage
300V
Voltage Rating
300V
Width
8.5mm
Compliance
RoHS
Compliant
Datasheet
Weidmuller 1796530000 Datasheet
Download the complete datasheet for Weidmuller 1796530000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

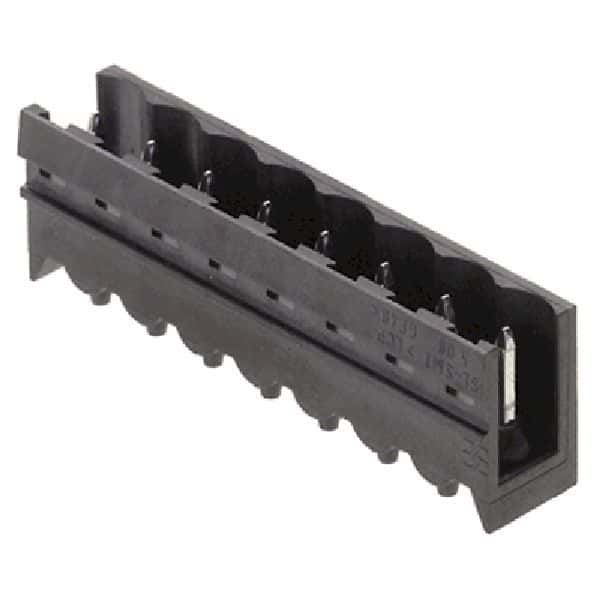

Product Images
