12-position, 3.81mm pitch terminal block for cable mounting. Features straight, male, single-level, single-row configuration with screw termination. Rated for 10A continuous current and 17.5A current rating, with a voltage rating of 320V. Constructed with copper alloy contacts plated in tin, housed in green UL94 V-0 flammability rated plastic. Operates within a temperature range of -50°C to 120°C and offers IP20 protection.
Voltage300V
Current10A
Voltage Rating320V
Current Rating17.5A
Quick Jump:
Technical Specifications
Weidmuller 1799240000 technical specifications.
General
| Color | Green |
| Contact Material | Copper Alloy, Copper |
| Contact Plating | Tin |
| Current | 10A |
| Current Rating | 17.5A |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 19.1mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -50°C |
| Mount | Free Hanging, Panel |
| Number of Circuits | 12 |
| Number of Contacts | 12 |
| Number of Levels | 1 |
| Number of Positions | 12 |
| Number of Positions Per Level | 12 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 3.81mm |
| Radiation Hardening | No |
| Ratings | IP20 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Omnimate BC |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 320V |
| Width | 10.4mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Weidmuller 1799240000 Datasheet
Download the complete datasheet for Weidmuller 1799240000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

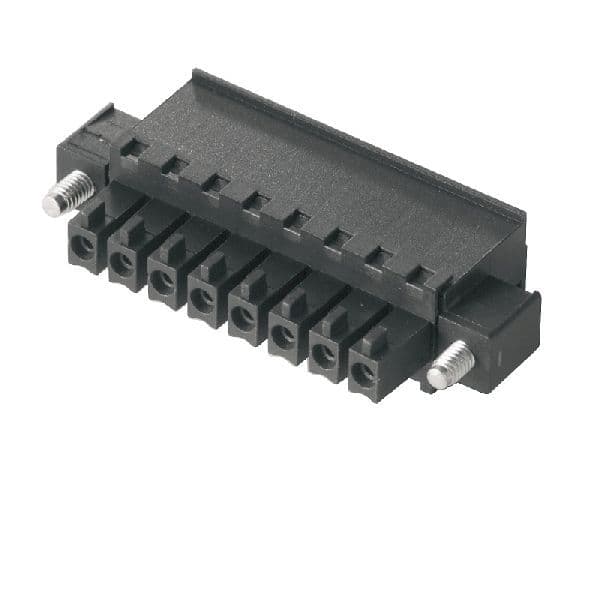

Product Images
