Technical Specifications
Wieland 70.310.1640.0 technical specifications.
General
| Color | Grey |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 16A |
| Gender | Male |
| Lead Free | Lead Free |
| Max Current Rating | 16A |
| Max Operating Temperature | 110°C |
| Min Operating Temperature | -40°C |
| Mount | Cable |
| Number of Contacts | 17 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Box |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Series | BAS |
| Termination | Screw |
| Wire/Cable Gauge | 14AWG |
Compliance
| RoHS | Not Compliant |
Datasheet
Wieland 70.310.1640.0 Datasheet
Download the complete datasheet for Wieland 70.310.1640.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

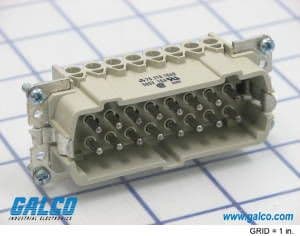

Product Images
